OptiMAX 80X Abrasive Waterjet

OptiMAX 80X OptiMAX 80X

OptiMAX 80X
PRECISION JETMACHINING CENTER

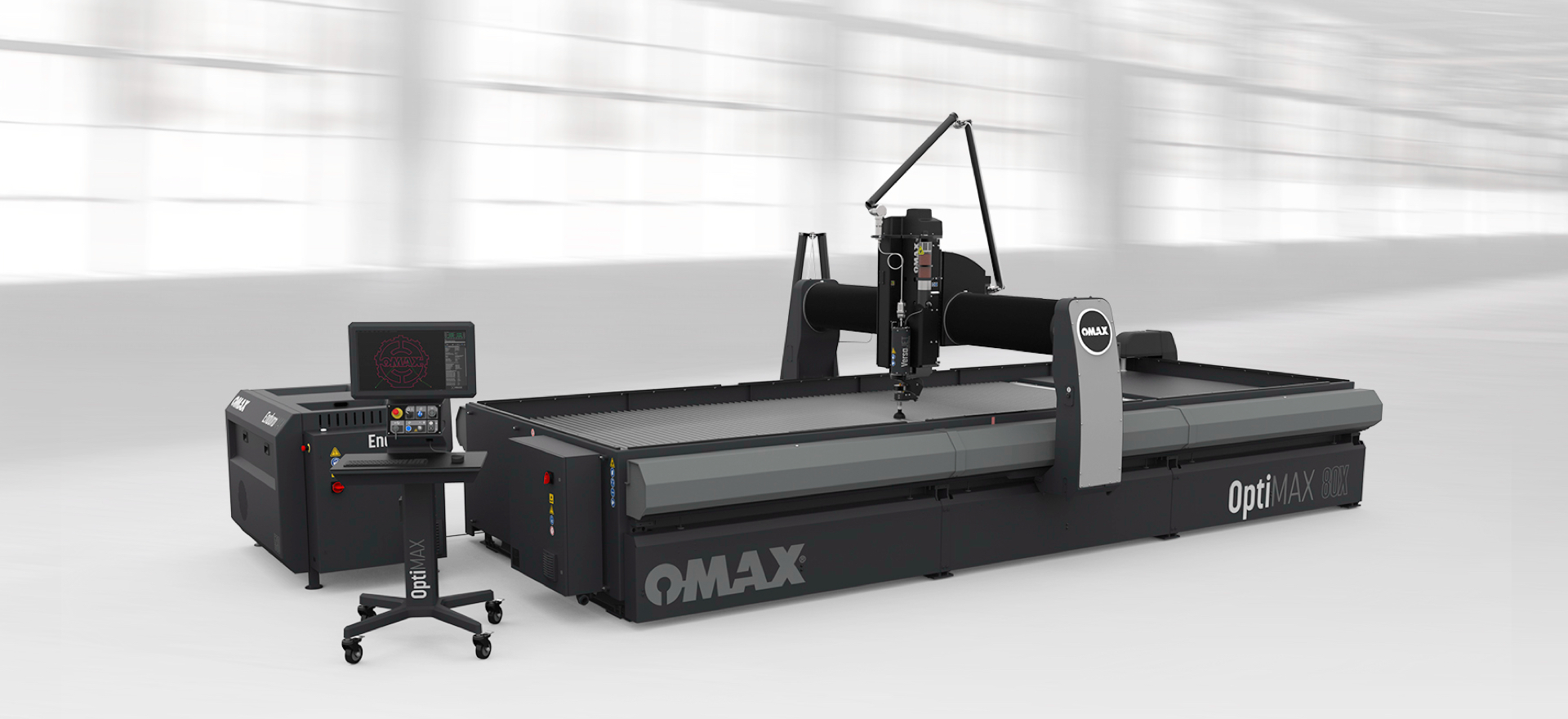

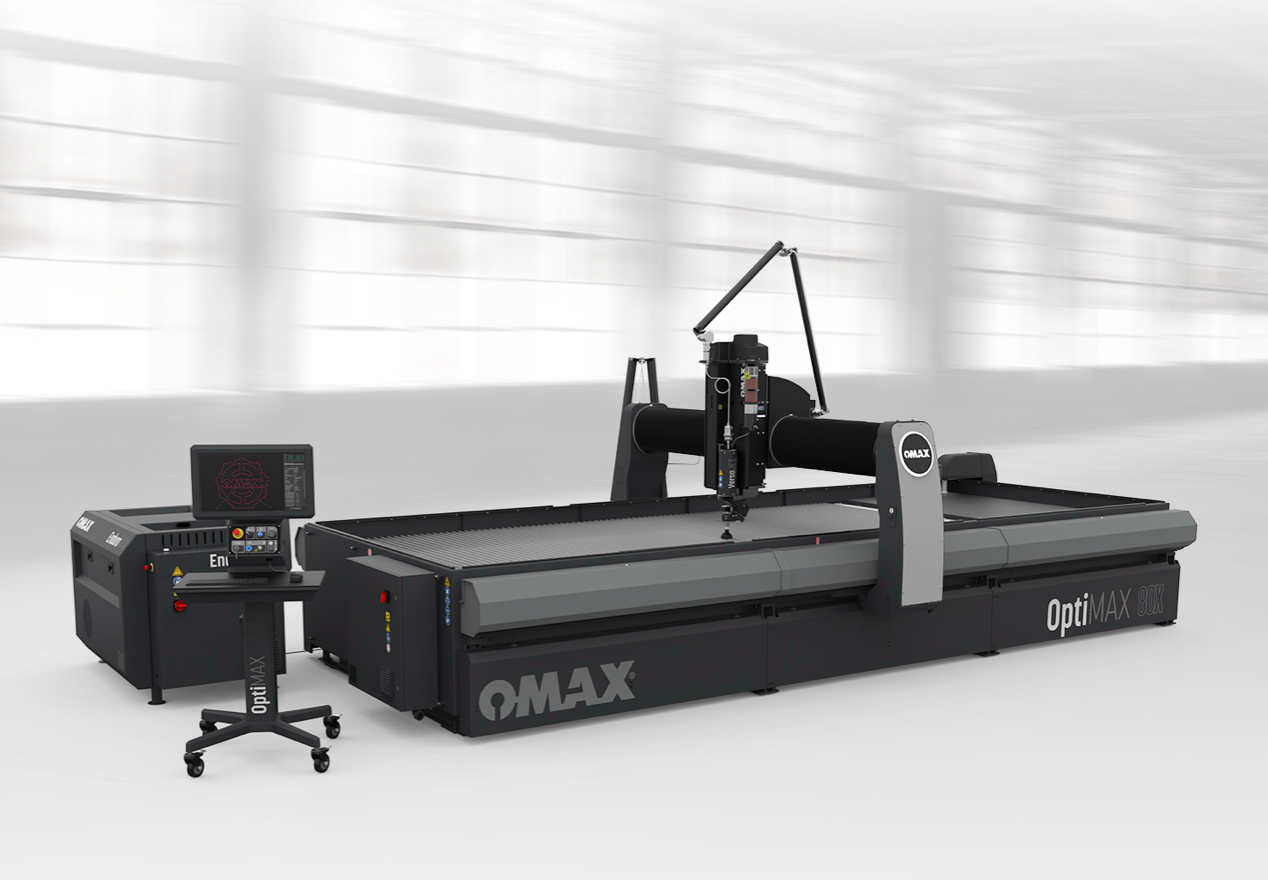

The pinnacle in high-performance precision abrasive waterjet cutting machining.

  • Cutting envelope of 13' 4" x 6' 8" (4.06 m x 2.03 m)
  • ±0.001" (±0.0025 mm) linear position accuracy

Waterjet system includes pump and software.
Contact OMAX about optional accessories for your OptiMAX

Expand all

  • Backed by our exclusive IntelliMAX Premium Software
  • Exclusive IntelliTRAX abrasive jet linear drive system provides 350 in/min (8.9 m/min) traverse with real-time closed-loop positioning feedback
  • 12-inch (305 mm) programmable Z axis travel with lowest ceiling height requirement design in the industry.
  • Standard Rapid Water Level Control for cleaner, safer, and quieter submerged cutting completes most work below 80 dBA

  • Designed and manufactured at the OMAX factory in Kent, Washington, USA
  • Does not create heat-affected zones or mechanical stresses
  • Machines a wide range of materials and thicknesses, from metals and composites to glass and plastics
  • No tool changes & minimal fixturing dramatically reduce setup

  • Unlimited free training for the life of your machine
  • Unlimited software upgrades for the life of the machine
  • 2-year / 4000-hour limited warranty
  • 3 days of onsite training upon installation

DIMENSIONS & SPECS

 80X80X-1
Footprint (with pump & controller)26' x 12' 11" (7.92 m x 3.94 m)32'8" x 12'11" (9.96m x 3.94m)
Height (with Scissor plumbing)10' (3.05 m)10' (3.05 m)
Operating Weight49,575 lb (22,487 kg)65,900 lb (6.09m x 2.03m)
Weight (tank empty)9,150 lb (4,150 kg)9,150 lb (4,150 kg)
X-Y Cutting Travel*13' 4" x 6' 8" (4.06 m x 2,03 m)20'0" x 6'8" (4.06 m x 2,03 m)
Z-Axis Travel (with Motorized Z Axis)*12" (304 mm)12" (304 mm)
Table Size15' 1" x 7' 2" (4.60 m x 2.18 m)21'9" x 7'2" (6.63m x 2.18m)
Material Supports Slats4" x 1/8" Galvanized Steel
Maximum Supported Material Load400 lbs/sq ft (1,950 kg/sq meter)
Electrical Requirements3-Phase, 380-480 VAC ±10%, 50-60 Hz
Noise LevelBelow 80 dBA at one meter for submerged cutting
Speed350 in/min (8.89 m/min)
Linear Positional Accuracy*±0.001" (±0.025 mm)
Repeatability*±0.001" (±0.025 mm)
Ballbar Circularity*±0.003" (±0.076 mm)

* Accessories may reduce travel. Accuracy specifications are at 72° F (22° C).

PUMP INFO

Maximized uptime with 1,000 hours between maintenance cycles
Increased production by delivering 30% more cutting power
Variable Frequency Drive reduces startup power consumption and maximizes operating flexibility

Learn more about OMAX pumps

  EnduroMAX 50 HP EnduroMAX 40 HP EnduroMAX 30 HP
Motor Power 50 HP (37kW) 40 HP (30kW) 30 HP (22 kW)
MAX Jet Power 42.5 HP (31.5 kW) 34.0 HP (34 kW) 25.5 HP (18.7 kW)
Output Pressure 60,000 psi 60,000 psi 60,000 psi
Orifice & Flow Rate 0.016" / 1.20gpm
(0.41 mm / 4.54 lpm)
0.014" / 0.92gpm
(0.36 mm / 3.48 lpm)
0.012" / 0.67 gpm
(0.30 mm / 2.54 lpm)
Footprint LxWxH 66" x 36" x 38.5"
(1,676mm x 914mm x 978mm)
66" x 36" x 38.5"
(1,676mm x 914mm x 978mm)
66" x 36" x 38.5"
(1,676mm x 914mm x 978mm)
Collision Sensing Terrain Follower
Collision Sensing Terrain Follower

The Collision Sensing Terrain Follower is an essential tool for working with uneven surfaces.

Laser Feature Finder
Laser Feature Finder

The Laser Feature Finder allows for visual reference before introducing water and garnet.

airsweep
Automated Air Sweep

In the event of a nozzle clog, the automated Air Sweep is designed with a fluid diverter to direct water away from the abrasive hopper.

Precision Optical Locator
Precision Optical Locator

The Precision Optical Locator is designed to let you accurately place parts on the OMAX for secondary machining operations.

Vacuum Assist
Vacuum Assist

The OMAX Vacuum Assist is ideal for piercing brittle materials, advanced composites, challenging laminates, and more.

Bulk Abrasive Delivery System
Bulk Abrasive Delivery System

Available in 100lbs., 600lbs., 2200 lbs. and 170 L systems, the Bulk Abrasive Deliver Systems provides continuous pressurized garnet.

Variable Speed Solid Removal System
Variable Speed Solid Removal System

The Variable Speed Solid Removal System allows for controlled solid evacuation to reduce downtime.

Indicator
Machine Status Indicator

Decrease operator observation and increase productivity with the machine status indicator lights for OptiMAX.

Underbridge Lighting
Under Bridge Lighting

Direct illumination of the cutting surface allows for the operator to clearly see the nozzle location, with two LED light banks to aid in cut set up, visibility, and project completion.

Chiller System
Chiller System

OMAX Chiller supplies inlet water at a consistent temperature extending pump seal life for longer, sustainable production.

Laminar Filter
Laminar Filter

The Laminar Filter cleans overflow required for recycling through a closed loop system or for sanitary disposal.

Reverse Osmosis System
Reverse Osmosis System

The Reverse Osmosis System can remove 90% of total dissolved solid in water.

Water Recycling System
Water Recycling System

The OMAX Water Recycling System captures and reuses workable overflow water.


Tilt-A-Jet
Tilt-A-Jet

The Tilt-A-Jet lets the OMAX JetMachining Center achieve virtually zero taper.

Versajet
VersaJet

VersaJET has a cutting range of 0 to 60 degrees for cutting beveled edges, angled sides, countersinks and complex 3D shapes.



Rotary Access
Rotary

The Rotary Axis is a submersible rotary head that allows the abrasive waterjet to cut up to 6-axis paths to create complex 3D shapes in tube, pipe, and bar stock.



Want to know more about the OptiMAX 80X Precision Jetmachining Center? Contact Sales
