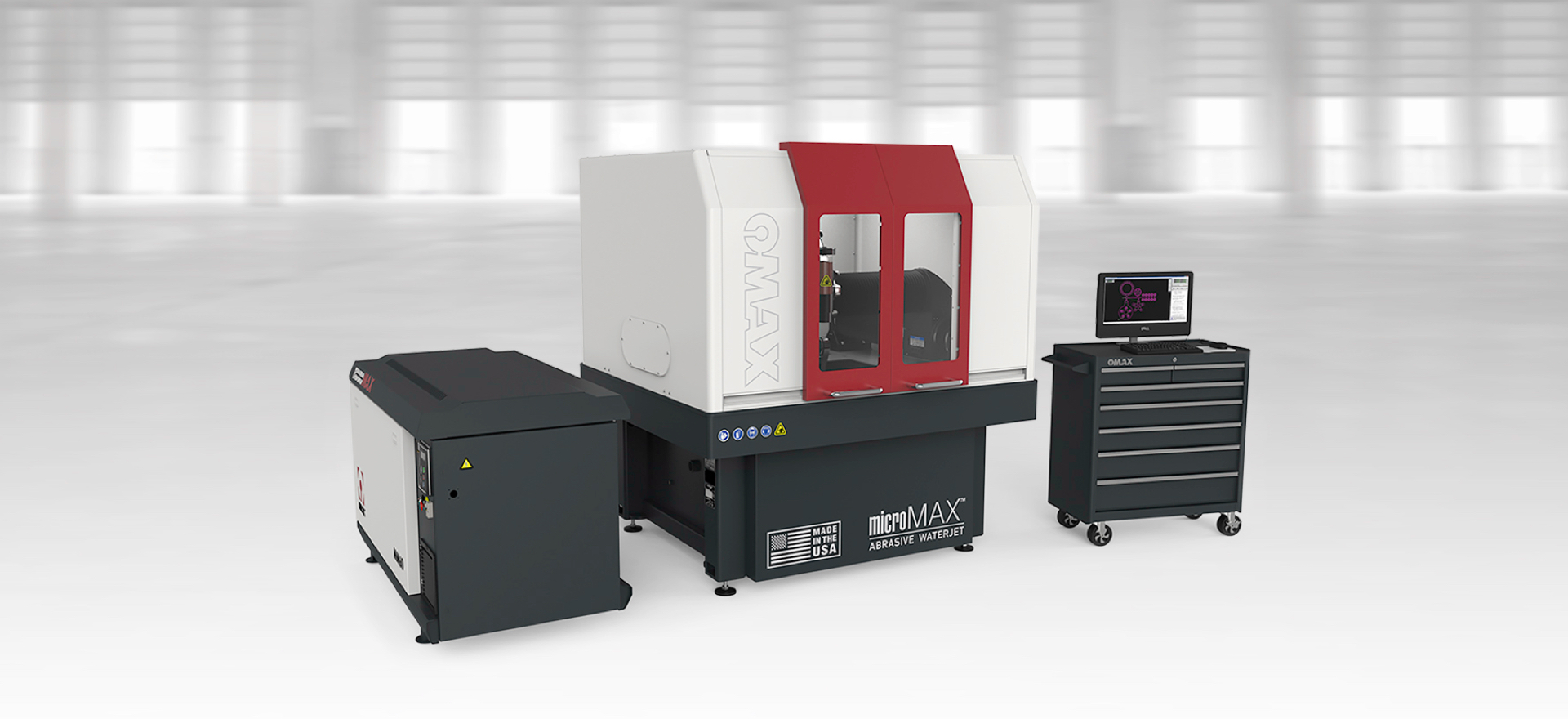

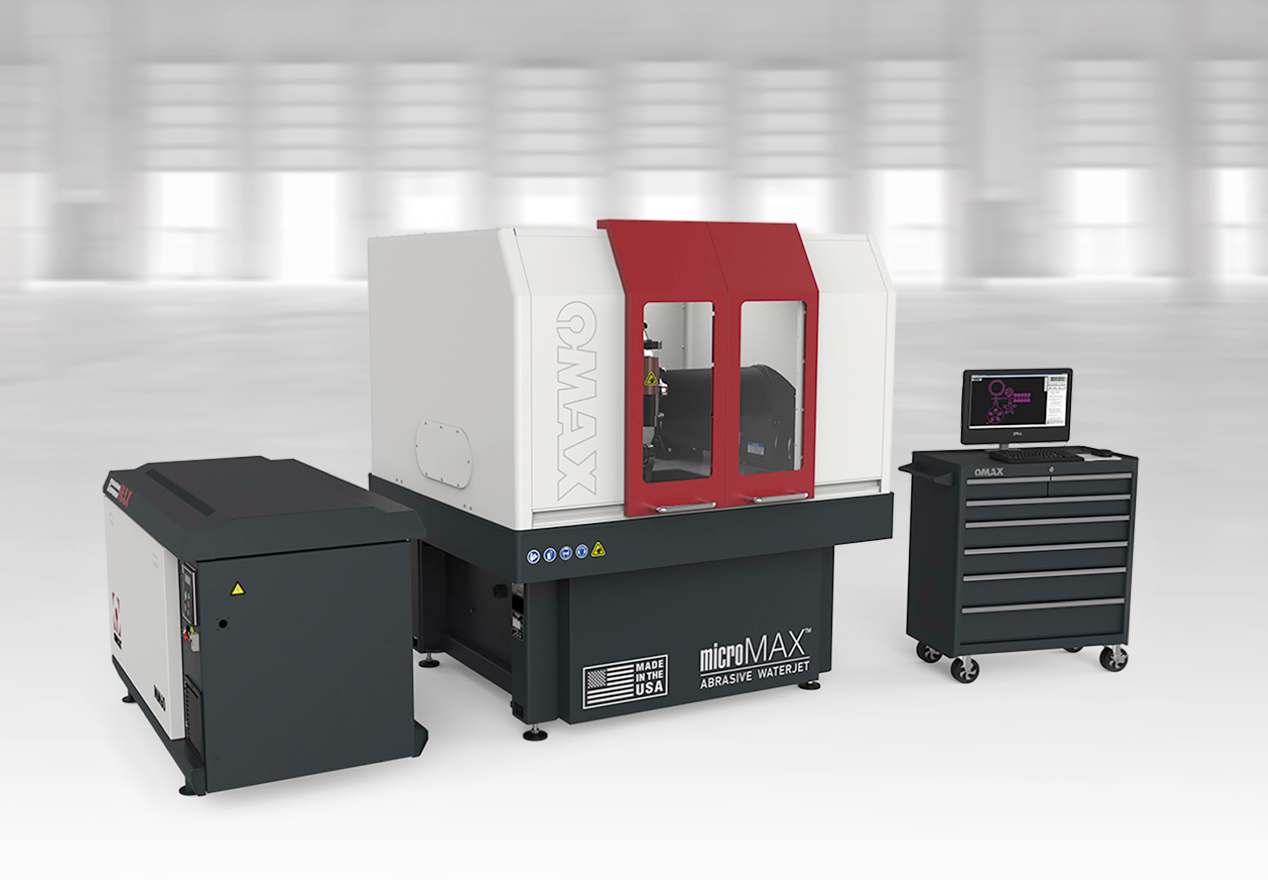

MicroMAX Abrasive Waterjet

 MicroMAX  MicroMAX

MicroMAX
PRECISION JETMACHINING CENTER

The MicroMAX is your solution for ultra-precision abrasive waterjet machining.

  • Cutting envelope of 2' 1" x 2' 1" (0.63 m x 0.63 m)
  • ±0.0001" (±2.5 micron) linear position accuracy

Waterjet system includes pump and software.

Expand all

  • Stiff construction greatly reduces vibration and increases accuracy
  • Vibration isolation of table and gantries
  • All components have matched thermal expansion
  • Full enclosure with environmental controls provides quiet, safe and clean operation below 80db
  • Advanced pressure controls for piercing delicate materials
  • Standard OMAX 7/15 Mini MAXJET 5 Nozzle acquires finer precision cutting capability with a 0.007" orifice and a 0.015" mixing tube combination
  • Standard Tilt-A-Jet taper eliminating abrasivejet cutting head
  • Standard Rapid Water Level Control for cleaner, safer, and quieter submerged cutting completes most work below 80 dBA

  • Designed and manufactured at the OMAX factory in Kent, Washington, USA
  • Does not create heat-affected zones or mechanical stresses
  • Machines a wide range of materials and thicknesses, from metals and composites to glass and plastics
  • No tool changes & minimal fixturing dramatically reduce setup

  • Unlimited free training for the life of your machine
  • Unlimited software upgrades for the life of the machine
  • 2-year / 4000-hour limited warranty
  • 3 days of onsite training upon installation

DIMENSIONS & SPECS

Footprint (with pump & controller)10' 2" x 7' 2" (3.10 m x 2.18 m)
Height (with whip plumbing)7' 6" (2.29 m)
Operating Weight7,372 lb (3,344 kg)
Weight (tank empty)3,700 lb (1,678 kg)
X-Y Cutting Travel*2' 1" x 2' 1" (0.63 m x 0.63 m)
Z-Axis Travel (with Motorized Z Axis)*4.5" (114 mm)
Table Size2' 11" x 3' 0" (0.89 m x 0.91 m)
Material Supports Slats4" x 1/8" Galvanized Steel
Maximum Supported Material Load400 lbs/sq ft (1,950 kg/sq meter)
Electrical Requirements3-Phase, 380-480 VAC ±10%, 50-60 Hz
Speed100 in/min (2,540 mm/min)
Linear Positional Accuracy*±0.0001" (±2.5 micron)
Repeatability*±0.0001" (±2.5 micron)
Ballbar Circularity*±0.0005" (±13 microns)

* Accessories may reduce travel. Accuracy specifications are at 72° F (22° C).

PUMP INFO

Maximized uptime with 1,000 hours between maintenance cycles
Increased production by delivering 30% more cutting power
Variable Frequency Drive reduces startup power consumption and maximizes operating flexibility

Learn more about OMAX pumps

 EnduroMAX 30HP
Motor Power30 HP (22 kW)
MAX Jet Power25.5 HP (18.7 kW)
Output Pressure60,000 psi
Orifice & Flow Rate **0.012" / 0.67 gpm
(0.30 mm / 2.54 lpm)
Footprint LxWxH44" x 62" x 44"
(1,118 mm x 1,575 mm x 1,118 mm)

Laser Feature Finder
Laser Feature Finder

The Laser Feature Finder allows for visual reference before introducing water and garnet.


Precision Optical Locator
Precision Optical Locator

The Precision Optical Locator is designed to let you accurately place parts on the OMAX for secondary machining operations.


Vacuum Assist
Vacuum Assist

The OMAX Vacuum Assist is ideal for piercing brittle materials, advanced composites, challenging laminates, and more.

Bulk Abrasive Delivery System
Bulk Abrasive Delivery System

Available in 100lbs., 600lbs., 2200 lbs. and 170 L systems, the Bulk Abrasive Deliver Systems provides continuous pressurized garnet.

Variable Speed Solid Removal System
Variable Speed Solid Removal System

The Variable Speed Solid Removal System allows for controlled solid evacuation to reduce downtime.


Chiller System
Chiller System

OMAX Chiller supplies inlet water at a consistent temperature extending pump seal life for longer, sustainable production.

Laminar Filter
Laminar Filter

The Laminar Filter cleans overflow required for recycling through a closed loop system or for sanitary disposal.

Reverse Osmosis System
Reverse Osmosis System

The Reverse Osmosis System can remove 90% of total dissolved solid in water.

Water Recycling System
Water Recycling System

The OMAX Water Recycling System captures and reuses workable overflow water.

Rotary Access
Rotary Axis

The Rotary Axis allows for 6-axis paths to create complex 3D shapes in tube, pipe, and bar stock.




Want to know more about the MicroMAX Precision Jetmachining Center? Contact Sales
