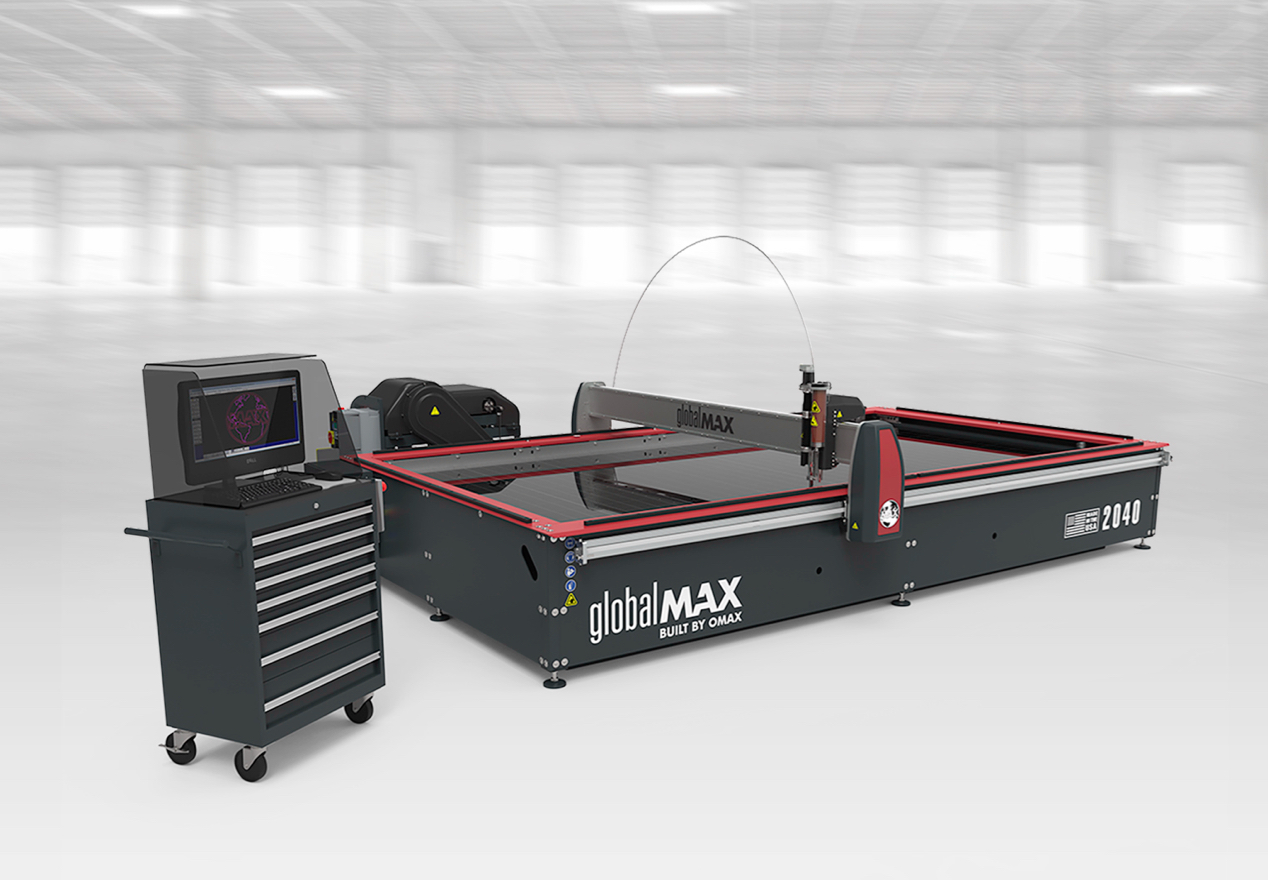

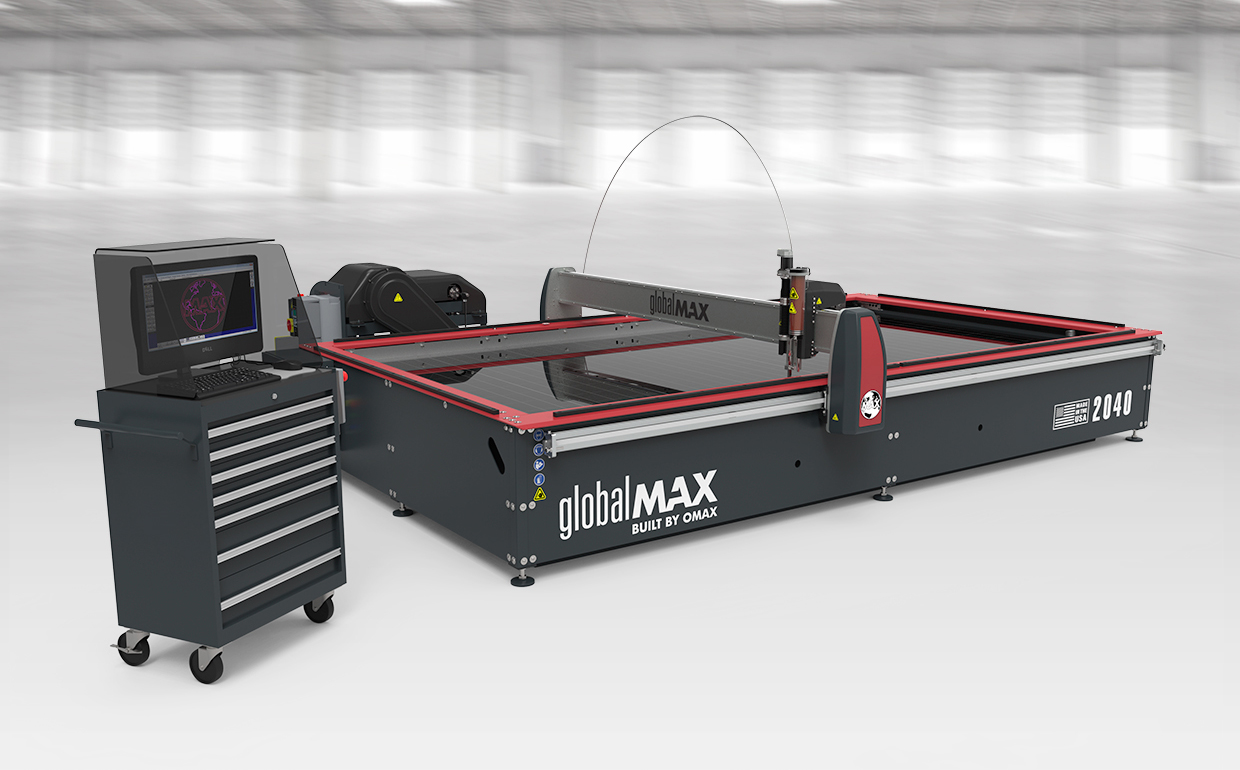

GlobalMAX 2040 Abrasive Waterjet

GlobalMAX 2040 GlobalMAX 2040

GlobalMAX 2040
JETMACHINING CENTER

The GlobalMAX 2040 abrasive waterjet is a value-focused abrasive waterjet that can cut almost any material and a wide variety of thicknesses.

  • Cutting envelope of 13’ 3” x 6’ 8” (4.03 m x 2.03 m)
  • ±0.003" (±0.076 mm) linear position accuracy

Waterjet system includes pump and software.

Expand all

  • IntelliMAX Global software uses our 4th generation cutting model to deliver the fast and efficient cutting
  • Innovative Omega Drive System provides smoother transition from rotary motion to linear motion compared to traditional rack and pinion drive systems
  • Omega Drive tooth engagement minimizes backlash and improves reliability

  • Designed and manufactured at the OMAX factory in Kent, Washington, USA
  • Does not create heat-affected zones or mechanical stresses
  • Machines a wide range of materials and thicknesses, from metals and composites to glass and plastics
  • No tool changes & minimal fixturing dramatically reduce setup

  • 1 year of free software upgrades
  • 1-year limited warranty
  • Fee-based training available

DIMENSIONS & SPECS

Footprint (with pump) 15' 11" x 13' 5" (4.85 m x 4.09 m)
Height (with whip plumbing) 9' 3" (2.82 m)
Operating Weight 18,421 lb (8356 kg)
Weight (tank empty) 5887 lb (2670 kg)
X-Y Cutting Travel* 13' 3" x 6' 8" (4.03 m x 2.03 m)
Z-Axis Travel (with Motorized Z Axis)* 5" (127 mm)
Table Size 13' 7" x 7' 2" (4.14 m x 2.18 m)
Maximum Supported Material Load 100 lbs/sq ft (488 kg/sq meter)
Electrical Requirements Varies depending on configuration. (See pump specs.)
Noise Level Below 80 dBA at one meter for submerged cutting
Speed 500 in/min (12.7 m/min)
Linear Positional Accuracy* ±0.003" (±0.076 mm)
Repeatability* ±0.001" (±0.025 mm)
Ballbar Circularity* ±0.007" (±0.178 mm)

* Accessories may reduce travel. Accuracy specifications are at 72° F (22° C).

PUMP INFO

Direct drive technology proven in thousands of installations worldwide
Efficient GlobalMAX pumps convert over 85% electrical power to pure cutting power

Learn more about OMAX pumps

  GlobalMAX 30 HP GlobalMAX 20 HP GlobalMAX 10 HP
Motor Power 30 HP (22 kW) 20 HP (15 kW) 10 HP (7.5 kW)
MAX Jet Power 25.5 HP (19 kW) 17 HP (12.5 kW) 7 HP (5.2 kW)
Output Pressure 45,000 psi 45,000 psi

30,000 psi

Orifice & Flow Rate ** 0.015" / 0.96 gpm
(0.33 mm / 3.63 lpm)
0.012" / 0.62 gpm
(0.30 mm / 2.35 lpm)
0.011" / 0.40 gpm
(0.28 mm / 1.51 lpm)
Footprint LxWxH 52.5" x 31" x 42"
(1,334 mm x 787 mm x 1067 mm)
52.5" x 31" x 42"
(1,334 mm x 787 mm x 1067 mm)

Collision Sensing Terrain Follower
Collision Sensing Terrain Follower

The Collision Sensing Terrain Follower is an essential tool for working with uneven surfaces.

Laser Feature Finder
Laser Feature Finder

The Laser Feature Finder allows for visual reference before introducing water and garnet.

OMAX Drill Head
OMAX Drill Head

Achieve reliable piercing of composites and laminates with an OMAX-Engineered pneumatic drill.



Bulk Abrasive Delivery System
Bulk Abrasive Delivery System

Available in 100lbs., 600lbs., 2200 lbs. and 170 L systems, the Bulk Abrasive Deliver Systems provides continuous pressurized garnet.

Chiller System
Chiller System

OMAX Chiller supplies inlet water at a consistent temperature extending pump seal life for longer, sustainable production.

Reverse Osmosis System
Reverse Osmosis System

The Reverse Osmosis System can remove 90% of total dissolved solid in water.

Water Recycling System
Water Recycling System

The OMAX Water Recycling System captures and reuses workable overflow water.

Want to know more about the GlobalMAX 2040 Jetmachining Center? Contact Sales
