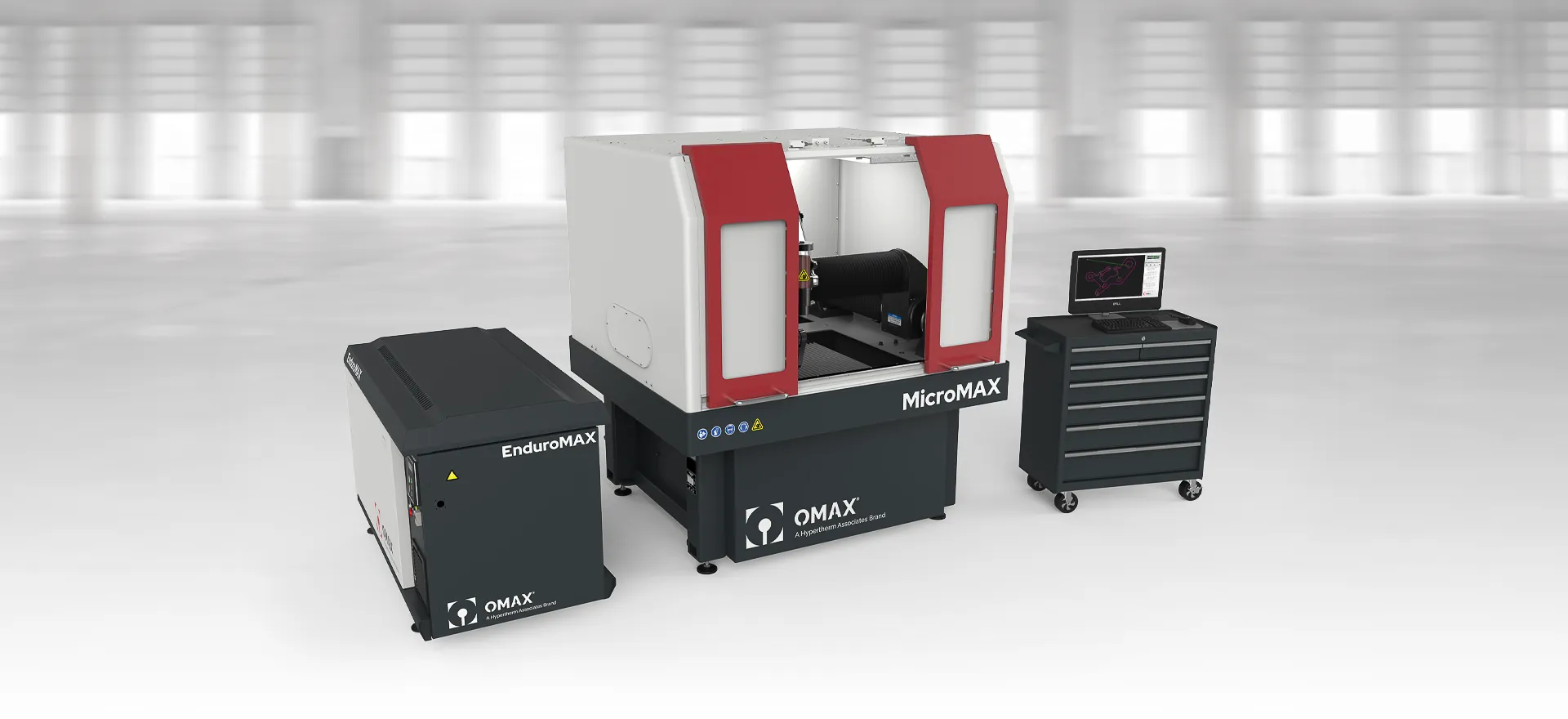

MicroMAX Precision Jetmachining Center
The MicroMAX is your solution for ultra-precision abrasive waterjet machining.
-
Cutting envelope of 2′ 1″ x 2′ 1″ (0.63 m x 0.63 m)
-
±0.0001″ (±2.5 micron) linear position accuracy
Related Links:
Waterjet system includes pump and software.
Features
Standard Features
-
Stiff construction greatly reduces vibration and increases accuracy
-
Vibration isolation of table and gantries
-
All components have matched thermal expansion
-
Full enclosure with environmental controls provides quiet, safe and clean operation below 80db
-
Advanced pressure controls for piercing delicate materials
-
Standard OMAX 7/15 Mini MAXJET 5 Nozzle acquires finer precision cutting capability with a 0.007″ orifice and a 0.015″ mixing tube combination
-
Standard TiltaJet taper eliminating abrasivejet cutting head
-
Standard Rapid Water Level Control for cleaner, safer, and quieter submerged cutting completes most work below 80 dBA
OMAX Benefits
-
Designed and manufactured at the OMAX facility in Kent, Washington, USA
-
Does not create heat-affected zones or mechanical stresses
-
Machines a wide range of materials and thicknesses, from metals and composites to glass and plastics
-
No tool changes & minimal fixturing dramatically reduce setup
Service & Training
-
Unlimited free training for the life of your machine
-
Unlimited software upgrades for the life of the machine
-
2-year / 4000-hour limited warranty
-
3 days of onsite training upon installation
Dimensions & specs
Machine Dimensions/Envelope
| Footprint (with pump & controller) | 10′ 2″ x 7′ 2″ (3.10 m x 2.18 m) |
|---|---|
| Height (with whip plumbing) | 7′ 6″ (2.29 m) |
| Operating Weight | 7,372 lb (3,344 kg) |
| Weight (tank empty) | 3,700 lb (1,678 kg) |
| X-Y Cutting Travel* | 2′ 1″ x 2' 1″ (0.63 m x 0.63 m) |
| Z-Axis Travel (with Motorized Z Axis)* | 4.5″ (114 mm) |
| Table Size | 2′ 11″ x 3' 0″ (0.89 m x 0.91 m) |
Model Specs
| Material Supports Slats | 4″ x 1/8″ Galvanized Steel |
|---|---|
| Maximum Supported Material Load | 400 lbs/sq ft (1,950 kg/sq meter) |
| Electrical Requirements | 3-Phase, 380-480 VAC ±10%, 50-60 Hz |
| Speed | 100 in/min (2,540 m/min) |
| Linear Positional Accuracy* | ±0.001″ (±2.5 micron) |
| Repeatability* | ±0.001″ (±2.5 micron) |
| Ballbar Circularity* | ±0.005″ (±13 microns) |
* Accessories may reduce travel. Accuracy specifications are at 72° F (22° C).
Pump info
Maximized uptime with 1,000 hours between maintenance cycles
Increased production by delivering 30% more cutting power
Variable Frequency Drive reduces startup power consumption and maximizes operating flexibility
| EnduroMAX 30 HP | |
|---|---|
| Motor Power | 30 HP (22 kW) |
| MAX Jet Power | 25.5 HP (18.7 kW) |
| Output Pressure | 60,000 psi |
| Orifice & Flow Rate ** | 0.012″ / 0.67 gpm (0.30 mm / 2.54 lpm) |
| Footprint LxWxH | 44″ x 62″ x 44″ (1,118 mm x 1,575 mm x 1,118mm) |
** Recommended maximum orifice size. Smaller orifice sizes have a corresponding lower flow rate.
Accessories
Z-Axis Accessories
Water Treatment Equipment
Multi-Axis Cutting
Laser Feature Finder
The Laser Feature Finder allows for visual reference before introducing water and garnet.
Precision Optical Locator
The Precision Optical Locator is designed to let you accurately place parts on the OMAX for secondary machining operations.
Vacuum Assist
The OMAX Vacuum Assist is ideal for piercing brittle materials, advanced composites, challenging laminates, and more.
Chiller System
OMAX Chiller supplies inlet water at a consistent temperature extending pump seal life for longer, sustainable production.
Laminar Filter
The Laminar Filter cleans overflow required for recycling through a closed loop system or for sanitary disposal.
Reverse Osmosis System
The Reverse Osmosis System can remove 90% of total dissolved solid in water.
Water Recycling System
The OMAX Water Recycling System captures and reuses workable overflow water.
Rotary Axis
The Rotary Axis allows for 6-axis paths to create complex 3D shapes in tube, pipe, and bar stock.
