Want to know more about the MAXIEM 3060X Jetmachining Center?

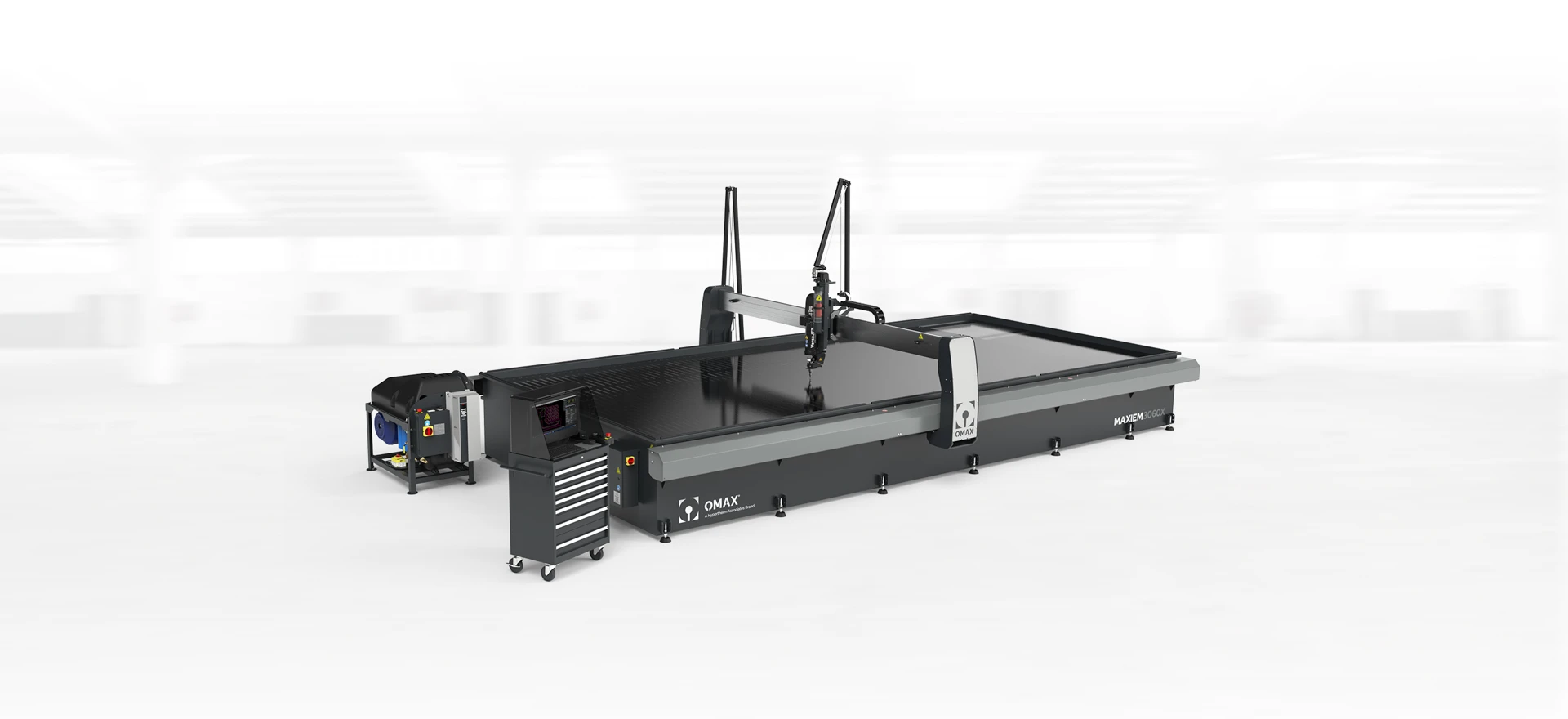

MAXIEM 3060X Jetmachining Center
Maximum Reach, Minimal Limits. With a wide-format table and multi-axis capability, the 3060X is ideal for complex, high-volume jobs.
-
Cutting envelope of 20′ 6″ x 10′ 2″ (6.24 m x 3.09 m)
-
±0.003″ (±0.076 mm) linear position accuracy
Related Links:
Waterjet system includes pump and software.
Features
Standard Features
-
Powered by OMAX's own IntelliMAX Premium Software
-
Powerful all-in-one controller computer with large 23" screen
-
Standard IntelliTRAX traction drive inside the X-Y Axis beams fully enclosed inside coated steel covers
-
Standard programmable Motorized Z-Axis with a precision OMAX MAXJET 5i Nozzle boosts productivity and process efficiency
-
Standard scissor-style hard plumbing
-
IntelliVISOR Mobile puts machine monitoring in your hand allowing you to review status, get notification and remotely pause operations. Available on IOS and Android.
OMAX Benefits
-
Designed and manufactured at the OMAX facility in Kent, Washington, USA
-
Does not create heat-affected zones or mechanical stresses
-
Machines a wide range of materials and thicknesses, from metals and composites to glass and plastics
-
No tool changes & minimal fixturing dramatically reduce setup
Service & Training
-
1 year of free training
-
1 year of free software upgrades
-
1 year / 2000-hour limited warranty
-
1 day of onsite training upon installation
Dimensions & specs
Machine Dimensions/Envelope
| Footprint (with pump & controller) | 28′ 6″ x 16′ 6″ (8.69 m x 5.03 m) |
|---|---|
| Height (with scissor plumbing) | 8′ 10″ (2.69 m) |
| Operating Weight | 70,105 lb (31,799 kg) |
| Weight (tank empty) | 26,000 lb (11,793kg) |
| X-Y Cutting Travel* | 20′ 6″ x 10' 2″ (6.24 m x 3.09 m) |
| Z-Axis Travel (with Motorized Z Axis)* | 12″ (304 mm) |
| Table Size | 22′ 9″ x 10′ 8″ (6.93 m x 3.25 m) |
Model Specs
| Material Supports Slats | 4″ x 14 Gauge Galvanized Steel (102 mm x 2 mm) |
|---|---|
| Maximum Supported Material Load | 300 lbs/sq ft (1,465 kg/sq meter) |
| Electrical Requirements | 3-Phase, 380-480 VAC ±10%, 50-60 Hz |
| Noise Level | Below 80 dBA at one meter for submerged cutting |
| Speed | 500 in/min (12,700 m/min) |
| Linear Positional Accuracy* | ±0.003″ (±0.076 mm) |
| Repeatability* | ±0.001″ (±0.025 mm) |
* Accessories may reduce travel. Accuracy specifications are at 72° F (22° C).
Pump info
Continuous 50,000 psi operation for faster part processing
Reliable design capable of over 500 cutting hours between maintenance cycles
Advanced pump technology lowers operating costs and increases pump operating life
| MAXIEM 40 HP | MAXIEM 30 HP | MAXIEM 20 HP | DynaMAX 330 | |
|---|---|---|---|---|
| Motor Power | 40 HP (30 kW) | 30 HP (22 kW) | 20 HP (15 kW) | 30 HP (22 kW) |
| MAX Jet Power | 34 HP (25 kW) | 25.5 HP (19 kW) | 17 HP (12.5 kW) | 20.6 HP (15.1 kW) |
| Output Pressure | 50,000 psi | 50,000 psi | 50,000 psi | 60,000 psi |
| Orifice & Flow Rate ** | 0.015″ / 1.09 gpm (0.41 mm / 4.13 lpm) |
0.014″ / 0.84 gpm (0.36 mm / 3.18 lpm) |
0.011″ / 0.52 gpm (0.28 mm / 1.97 lpm) |
0.011″ / 0.6 gpm (0.28 mm / 2.3 lpm) |
| Footprint LxWxH | 52.5″ x 31″ x 42″ (1,334 mm x 787 mm x 1,067 mm) |
52.5″ x 31″ x 42″ (1,334 mm x 787 mm x 1,067 mm) |
52.5″ x 31″ x 42″ (1,334 mm x 787 mm x 1,067 mm) |
43″ x 53″ x 40″ (1,090 mm x 1,350 mm x 1,010 mm) |
Additional pump configurations available.
** Recommended maximum orifice size. Smaller orifice sizes have a corresponding lower flow rate.
Accessories
Z-Axis Accessories
Tank Enhancement
Water Treatment Equipment
Multi-Axis Cutting
Collision Sensing Terrain Follower
The Collision Sensing Terrain Follower is an essential tool for working with uneven surfaces.
Laser Feature Finder
The Laser Feature Finder allows for visual reference before introducing water and garnet.
Omax Drill Head
Achieve reliable piercing of composites and laminates with an OMAX-Engineered pneumatic drill.
Terrain Follower
Used with the A-Jet cutting head, the Terrain Followers adjusts standoff to compensate for irregularities in the material surface.
Vacuum Assist
The OMAX Vacuum Assist is ideal for piercing brittle materials, advanced composites, challenging laminates, and more.
Bulk Abrasive Delivery System
Available in 100lbs., 600lbs., 2200 lbs. and 170 L systems, the Bulk Abrasive Deliver Systems provides continuous pressurized garnet.
Variable Speed Solid Removal System
The Variable Speed Solid Removal System allows for controlled solid evacuation to reduce downtime.
Scissor Style Plumbing
OMAX Scissor-Style Plumbing replaces the standard whip on the MAXIEM and OMAX 2626.
Water Level Control
OMAX Rapid Water Level Control allows for the pneumatic raising and lower of the water level to allow for cutting underwater.
Clog Sensor
The Vacuum Clog Sensor automatically pauses your abrasive water jet system when abrasive flow clog is detected.
Chiller System
OMAX Chiller supplies inlet water at a consistent temperature extending pump seal life for longer, sustainable production.
Laminar Filter
The Laminar Filter cleans overflow required for recycling through a closed loop system or for sanitary disposal.
Reverse Osmosis System
The Reverse Osmosis System can remove 90% of total dissolved solid in water.
Water Recycling System
The OMAX Water Recycling System captures and reuses workable overflow water.
VersaJET
VersaJET has a cutting range of 0 to 60 degrees for cutting beveled edges, angled sides, countersinks and complex 3D shapes.
