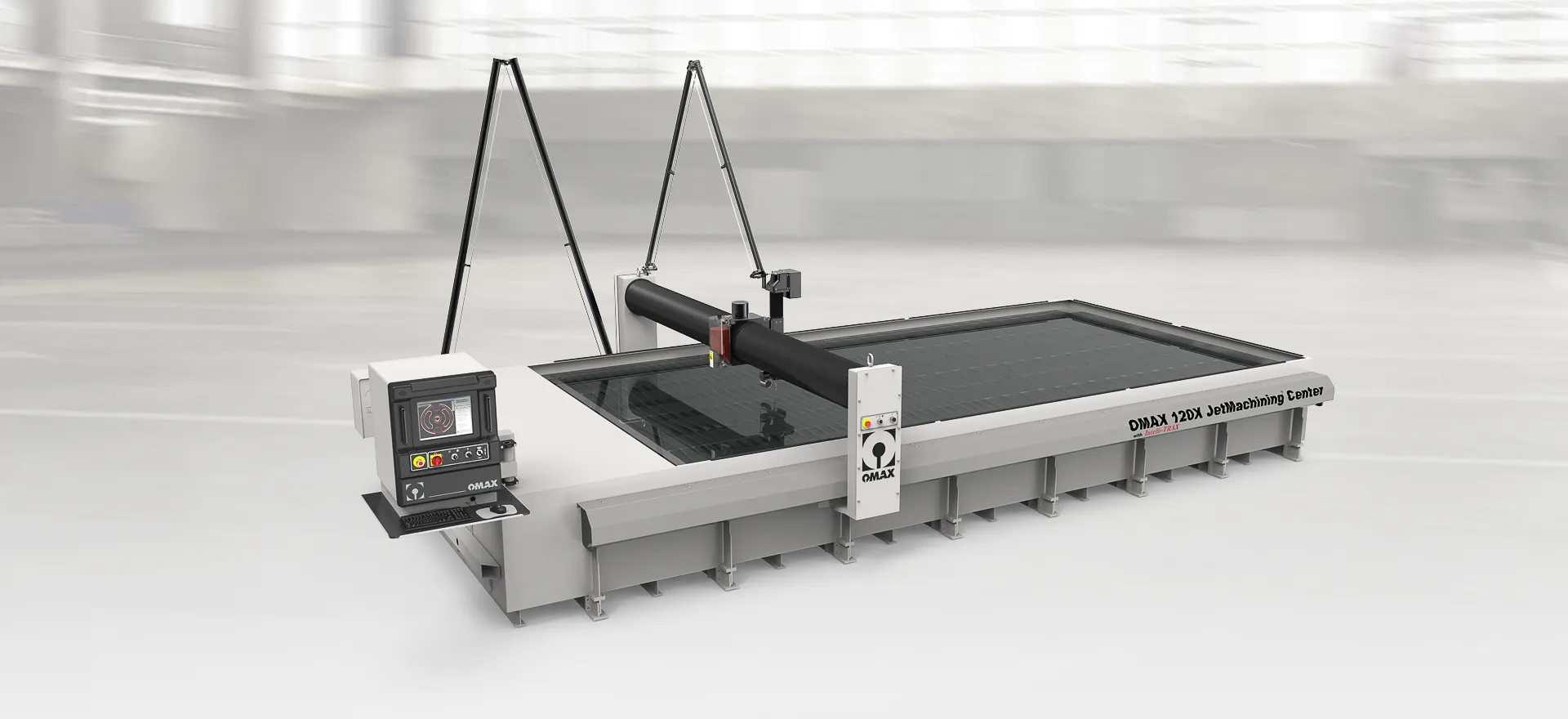

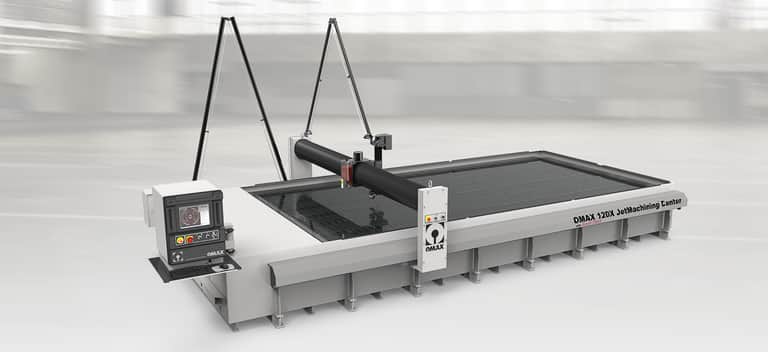

OMAX 120X Series PRECISION JETMACHINING CENTER
The OMAX 120X is ideal for multiple-part projects or large-scale part production.
-
Available in a range of lengths from 33′ 3″ to 51′ 6″ feet (10.13 m to 15.70 m)
-
±0.001″ (±0.025 mm) linear position accuracy
Related Links:
Waterjet system includes pump and software.
Features
Standard Features
-
Backed by our exclusive IntelliMAX Premium Software
-
Advanced high-precision IntelliTRAX linear drive technology designed exclusively for the abrasive waterjet environment
-
Standard programmable Motorized Z-Axis with a precision OMAX MAXJET 5i Nozzle boosts productivity and process efficiency
-
Standard Rapid Water Level Control for cleaner, safer, and quieter submerged cutting completes most work below 80 dBA
-
Standard 600 lb Bulk Abrasive Delivery System transports garnet from the assembly's large hopper into the Zero Downtime Hopper located on the Z-Axis
-
Standard scissor-style hard plumbing
OMAX Benefits
-
Designed and manufactured at the OMAX facility in Kent, Washington, USA
-
Does not create heat-affected zones or mechanical stresses
-
Machines a wide range of materials and thicknesses, from metals and composites to glass and plastics
-
No tool changes & minimal fixturing dramatically reduce setup
Service & Training
-
Unlimited free training for the life of your machine
-
Unlimited software upgrades for the life of the machine
-
2-year / 4000-hour limited warranty
-
3 days of onsite training upon installation
Dimensions & specs
Machine Dimensions/Envelope
| 120X-S | 120X | 120X-1 | 120X-2 | 120X-3 | |
| Footprint (with pump) | 26′ 7″ x 19′ 5″ (8.10 m x 5.92 m) |
33′ 3″ x 19′ 5″ (10.13 m x 5.92 m) |
37′ 2″ x 22′ 5″ (11.33 m x 6.83 m) |
44′ 1″ x 22′ 5″ (13.44 m x 6.83 m) |
51' 6" x 22' 5" (15.70 m x 6.83 m) |
| Height (with Scissor plumbing) | 14′ (4.27 m) | 14′ (4.27 m) | 14′ (4.27 m) | 14′ (4.27 m) | 14′ (4.27 m) |
| Operating Weight | 58,961 lb (26,744 kg) |
71,679 lb (55,997 kg) |
88,937 lb (44,096 kg) |
106,195 lb (48,169 kg) |
123,453 lb (55,997 kg) |
| Weight (tank empty) | 22,000 lb (9,979 kg) |
22,000 lb (9,979 kg) |
26,000 lb (11,793 kg) |
30,000 lb (13,608 kg) |
34,000 lb (15,422 kg) |
| X-Y Cutting Travel* |
13′ 4″ x 10′ |
20′ x 10′ (6.06 m x 3.04 m) |
26′ 8″ x 10′ (8.12 m x 3.04 m) |
33′ 4″ x 10′ (10.16 m x 3.04 m) |
40′ x 10′ (12.19 m x 3.04 m) |
| Z-Axis Travel (with Motorized Z Axis)* | 8" (203 mm) | 8" (203 mm) | 8" (203 mm) | 8" (203 mm) | 8" (203 mm) |
| Table Size | 14′ 11″ x 11′ 5″ (4.55 m x 3.48 m) |
21′ x 11′ 5″ (6.40 m x 3.48 m) |
28′ 3″ x 11′ 5″ (6.40 m x 3.48 m) |
34′ 11″ x 11′ 5″ (10.64 m x 3.48 m) |
41′ x 11′ 5″ (12.50 m x 3.48 m) |
Model Specs
| Material Supports Slats | 4″ x 1/8″ Galvanized Steel |
|---|---|
| Maximum Supported Material Load | 400 lbs/sq ft (1,950 kg/sq meter) |
| Electrical Requirements | 3-Phase, 380-480 VAC ±10%, 50-60 Hz |
| Noise Level | Below 80 dBA at one meter for submerged cutting |
| Speed | 350 in/min (8,890 mm/min) |
| Linear Positional Accuracy* | ±0.001″ (±0.025 mm) |
| Repeatability* | ±0.001″ (±0.025 mm) |
| Ballbar Circularity* | ±0.005″ (±0.127 mm) |
* Accessories may reduce travel. Accuracy specifications are at 72° F (22° C).
Pump info
Maximized uptime with 1,000 hours between maintenance cycles
Increased production by delivering 30% more cutting power
Variable Frequency Drive reduces startup power consumption and maximizes operating flexibility
| EnduroMAX 100 HP | EnduroMAX 50 HP | EnduroMAX 30 HP | DynaMAX 575P | |
|---|---|---|---|---|
| Motor Power | 100 HP (75 kW) | 50 HP (37kW) | 30 HP (22 kW) | 75 HP (56 kW) |
| MAX Jet Power | 85 HP (63 kW) | 42.5 HP (31.5 kW) | 25.5 HP (18.7 kW) | 51.6 HP (37.9 kW) |
| Output Pressure | 60,000 psi | 60,000 psi | 60,000 psi | 60,000 psi |
| Orifice & Flow Rate ** | 0.022″ / 2.25 gpm (0.56 mm / 8.52 lpm) |
0.016″ / 1.20 gpm (0.41 mm / 4.54 lpm) |
0.012″ / 0.67 gpm (0.30 mm / 2.54 lpm) |
0.017″ / 1.5 gpm (0.43 mm / 5.68 lpm) |
| Footprint LxWxH | 44″ x 62″ x 44″ (1,118 mm x 1,575 mm x 1,118 mm) |
66″ x 36″ x 38.5″ (1,676 mm x 914 mm x 978 mm) |
66″ x 36″ x 38.5″ (1,676 mm x 914 mm x 978 mm) |
40″ x 79″ x 59″ (1,016 mm x 1,996 mm x 1,509 mm) |
Additional pump configurations available.
** Recommended maximum orifice size. Smaller orifice sizes have a corresponding lower flow rate.
Accessories
Z-Axis Accessories
Tank Enhancement
Water Treatment Equipment
Bridges
Multi-Axis Cutting
Collision Sensing Terrain Follower
The Collision Sensing Terrain Follower is an essential tool for working with uneven surfaces.
Laser Feature Finder
The Laser Feature Finder allows for visual reference before introducing water and garnet.
Omax Drill Head
Achieve reliable piercing of composites and laminates with an OMAX-Engineered pneumatic drill.
Precision Optical Locator
The Precision Optical Locator is designed to let you accurately place parts on the OMAX for secondary machining operations.
Terrain Follower
Used with the A-Jet cutting head, the Terrain Followers adjusts standoff to compensate for irregularities in the material surface.
Vacuum Assist
The OMAX Vacuum Assist is ideal for piercing brittle materials, advanced composites, challenging laminates, and more.
Bulk Abrasive Delivery System
Available in 100lbs., 600lbs., 2200 lbs. and 170 L systems, the Bulk Abrasive Deliver Systems provides continuous pressurized garnet.
Variable Speed Solid Removal System
The Variable Speed Solid Removal System allows for controlled solid evacuation to reduce downtime.
Large Solid Removal System
The Large Solid Removal System provides controlled solid evaluation on OMAX’s largest tables.
Chiller System
OMAX Chiller supplies inlet water at a consistent temperature extending pump seal life for longer, sustainable production.
Laminar Filter
The Laminar Filter cleans overflow required for recycling through a closed loop system or for sanitary disposal.
Reverse Osmosis System
The Reverse Osmosis System can remove 90% of total dissolved solid in water.
Water Recycling System
The OMAX Water Recycling System captures and reuses workable overflow water.

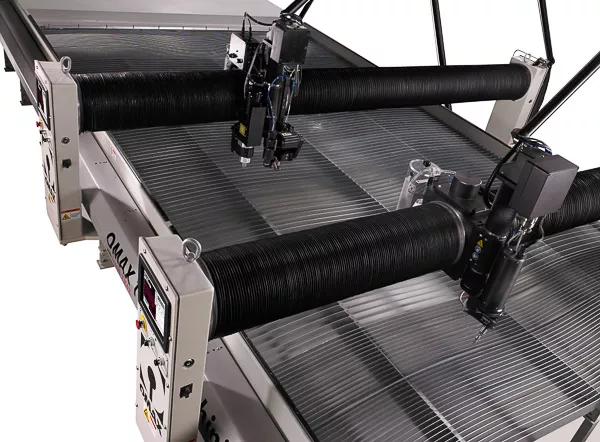

DualBridge System
The DualBRIDGE System is a configuration option that allows the addition of a second Y-bridge to boost efficiency and flexibility.
Rotary Axis
The Rotary Axis allows for 6-axis paths to create complex 3D shapes in tube, pipe, and bar stock.
TiltaJet
The TiltaJet lets the OMAX JetMachining Center achieve virtually zero taper.

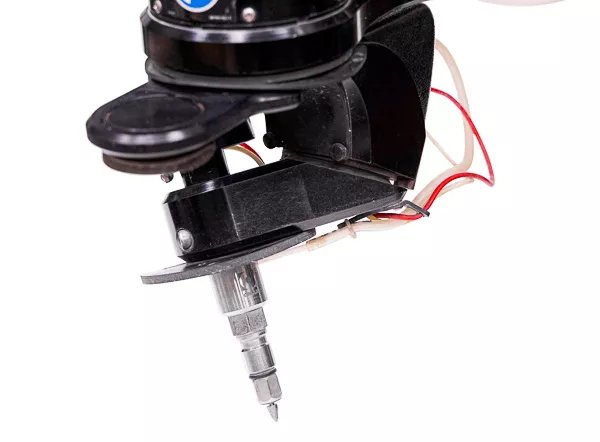

AJet
With a cutting range from 0° to 60°, the A-Jet can easily cut beveled edges, angled sides, and countersinks.
