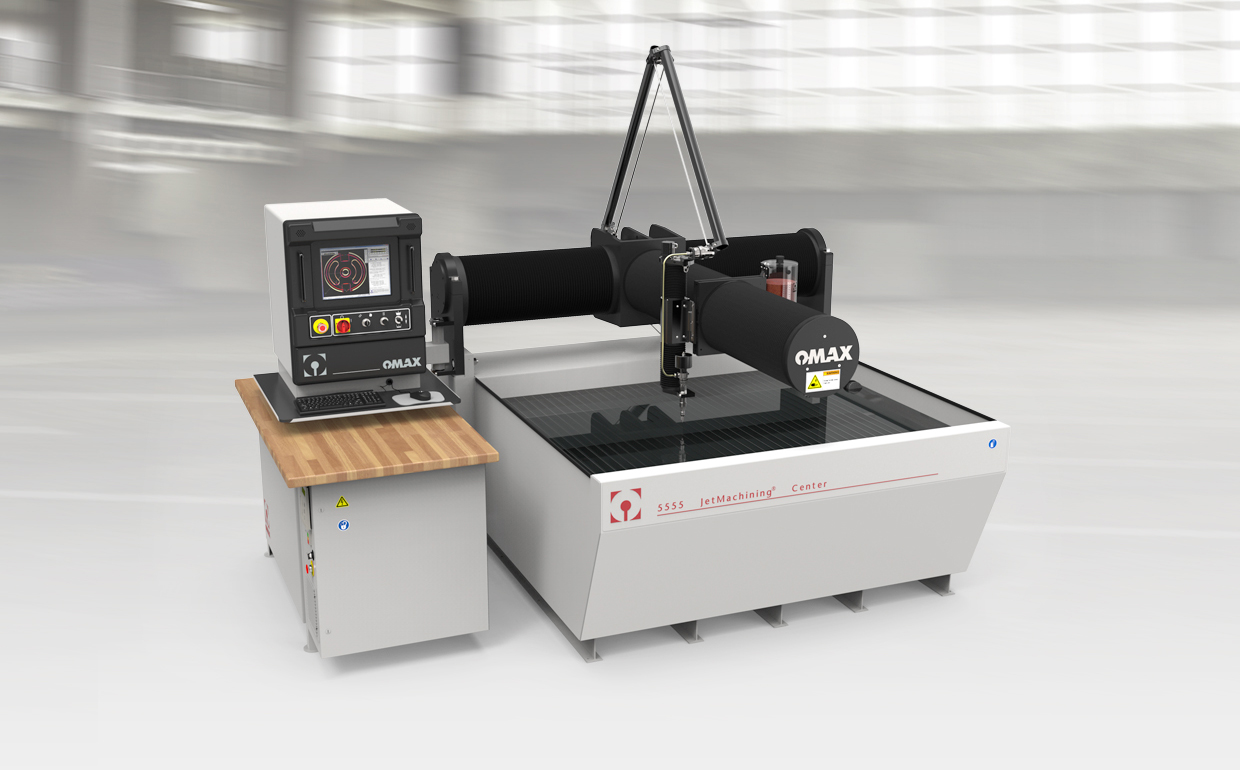

OMAX 5555

Precision JetMachining Center »

All products meet rigorous international standards and requirements. Learn more »

See OMAX 5555

MSV 2018 SHOW

Oct 1 - Oct 5

The OMAX 5555 JetMachining Center is a perfect fit for shops needing a machine with a smaller footprint but capable of cutting 4 foot x 4 foot. With a completely sealed and protected ball screw drive system, this robust and reliable workhorse is perfect for shops cutting projects needing high precision.

Technical Specs
Benefits & Features
Resources

Units:

US
Metric

OMAX 5555 Front View

9’ 10” Height 2,997 mm Height

10’ 11” Length 3,327 mm Length
OMAX 5555 Side View

9’ 10” Height 2,997 mm Height

7’ 11” Width 2,413 mm Width

Machine Dimensions

Footprint * – (L x W)	10’ 11” x 7’ 11”	3,327 mm x 2,413 mm
Height **	9’ 10”	2,997 mm
Weight (tank empty)	6,291 lb	2,854 kg

Work Envelope

X-Y Cutting Envelope ***	4’ 7” x 4’ 7”	1,397 mm x 1,397 mm
Z-Axis Travel ***	8”	203 mm
Table Size – (L x W)	6’ 8” x 5’ 5”	2,032 mm x 1,651 mm

Standard Model Specifications

Speed	180 in/min	4,572 mm/min
Linear Positional Accuracy	±0.0010"	±0.0254 mm
Repeatability	±0.0010"	±0.0254 mm
Ballbar Circularity	±0.0025"	±0.0635 mm

* Footprint includes controller but not the pump.

** With standard scissor plumbing.

*** Additional accessories may reduce travel.

Fastest cutting speeds and best precision compared to any competitive abrasive waterjet in the industry
Backed by our exclusive Intelli-MAX Software with real world cutting data
Robust and accurate design for tight tolerance cutting and reliable operation
Easy operator access to the work area
Small, efficient footprint for minimal floor space utilization
Precision X-Y Axis rigidly mounted to the cutting table
Pre-loaded linear bearings and precision ball screws
Drive system sealed against water, dirt, and grit
No tool changes & minimal fixturing dramatically reduce setup
Machines a wide range of materials and thicknesses, from metals and composites to glass and plastics
Leaves behind a satin-smooth edge, reducing secondary operations
Does not create heat-affected zones or mechanical stresses
Environmentally "green" system uses only natural garnet abrasive and water in the cutting process
No noxious fumes, liquid or oils used in, or caused by, the machining process
Shipped as a completely pre-assembled and factory-tested system
Designed and manufactured at the OMAX factory in Kent, Washington, USA
Standard programmable Motorized Z-Axis with a precision OMAX MAXJET 5i Nozzle boosts productivity and process efficiency
Standard Intelli-CAM software program is available with two tools in one that can generate either 2D or 3D tool paths from 3D models.
Standard Intelli-VISOR SE System Monitoring offers predictive maintenance and system monitoring to minimize unexpected downtime
Standard scissor-style hard plumbing adds another level of safety by using contained high-pressure components, as well as contributes to a smaller footprint, lower maintenance, and higher reliability
Standard Rapid Water Level Control for cleaner, safer, and quieter submerged cutting completes most work below 80 dBA
Optional Bulk Abrasive Delivery System transports garnet from the assembly's large hopper into the Zero Downtime Hopper located on the Z-Axis
Optional Tilt-A-Jet taper eliminating abrasivejet cutting head
Optional Variable Speed Solids Removal System (VS-SRS) designed for industrial use increases uptime through automated solids removal
High efficiency EnduroMAX pump system available in 30 hp, 40 hp, 50 hp or 100 hp with operating efficiencies up to 85%
EnduroMAX pump technology delivers the highest nozzle horsepower in the industry for faster and more efficient cutting
Highly robust and reliable pump design capable of over 1,000 hours between maintenance
Uses substantially less cooling water than inefficient hydraulic intensifier pumps
Lowest electrical consumption compared to other pump technology
