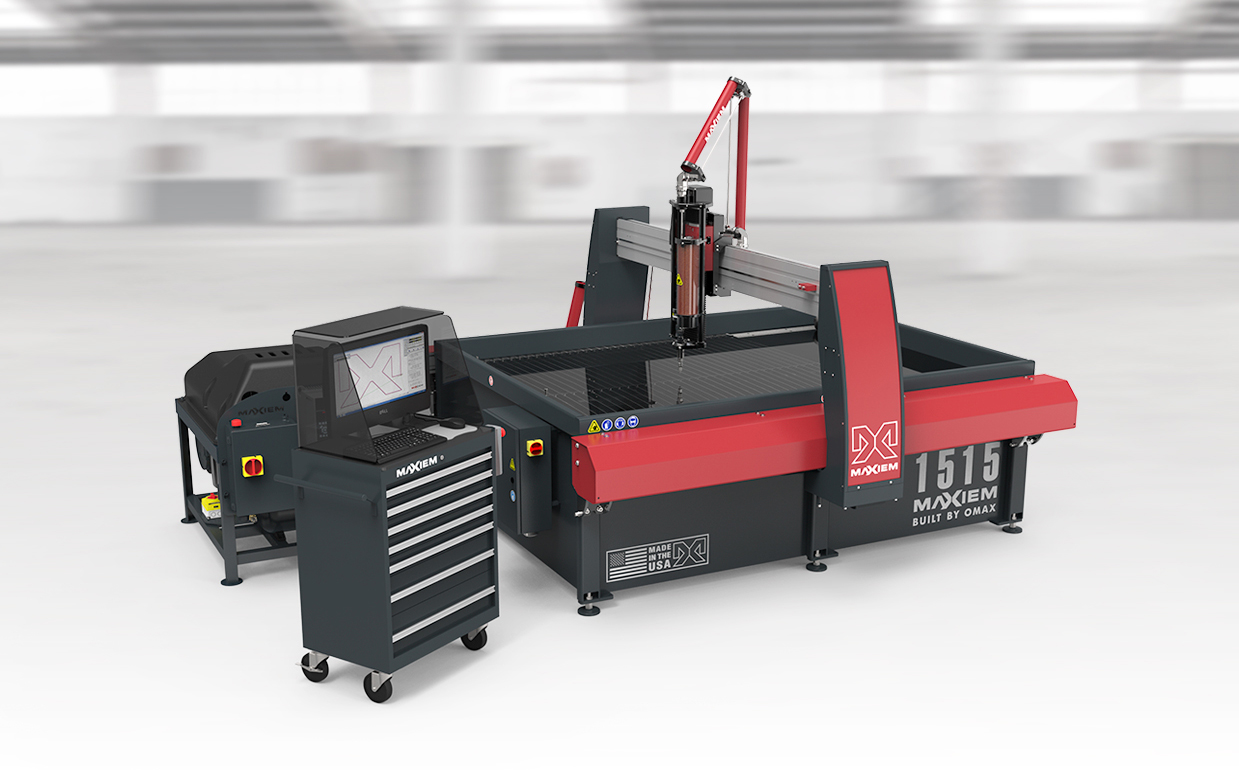

MAXIEM 1515 Abrasive Waterjet

MAXIEM 1515 MAXIEM 1515

MAXIEM 1515
JETMACHINING CENTER

With an ample cutting area that easily fits material stock, the MAXIEM 1515 is an excellent fit for fabrication and job shops.

  • Cutting envelope of 5' 2" x 5' 2" (1. 57 m x 1.57 m)
  • ±0.003" (±0.076 mm) linear position accuracy

Waterjet system includes pump and software.

Expand all

  • Backed by our exclusive IntelliMAX Standard Software
  • Powerful all-in-one controller computer with large 23" screen
  • Standard IntelliTRAX traction drive inside the X-Y Axis beams fully enclosed inside coated steel covers
  • Standard programmable Motorized Z-Axis with a precision OMAX MAXJET 5i Nozzle boosts productivity and process efficiency

  • Designed and manufactured at the OMAX factory in Kent, Washington, USA
  • Does not create heat-affected zones or mechanical stresses
  • Machines a wide range of materials and thicknesses, from metals and composites to glass and plastics
  • No tool changes & minimal fixturing dramatically reduce setup

DIMENSIONS & SPECS

Footprint (with pump & controller)13' 3" x 12' 5" (4.04 m x 3.78 m)
Height (with whip plumbing)10' 6" (3.20 m)
Operating Weight14,114 lb (6402 kg)
Weight (tank empty)6,000 lb (2722 kg)
X-Y Cutting Travel*5' 2" x 5' 2" (1.57 m x 1.57 m)
Z-Axis Travel (with Motorized Z Axis)*12" (304 mm)
Table Size7' 4" x 5' 8" (2.24 m x 1.73 m)
Material Supports Slats4" x 14Ga Galvanized Steel (102 mm x 2 mm)
Maximum Supported Material Load300 lbs/sq ft (1,465 kg/sq meter)
Electrical Requirements3-Phase, 380-480 VAC ±10%, 50-60 Hz
Noise LevelBelow 80 dBA at one meter for submerged cutting
Speed500 in/min (12.7 m/min)
Linear Positional Accuracy*±0.003" (±0.076 mm)
Repeatability*±0.001" (±0.025 mm)

* Accessories may reduce travel. Accuracy specifications are at 72° F (22° C).

PUMP INFO

Continuous 50,000psi operation for faster part processing
Reliable design capable of over 500 cutting hours between maintenance cycles
Advanced pump technology lowers operating costs and increases pump operating life

Learn more about OMAX pumps

 MAXIEM 40 HPMAXIEM 30 HPMAXIEM 20 HPDynaMAX 330
Motor Power40 HP (30 kW)30 HP (22 kW)20 HP (15 kW)30 HP (22 kW)
MAX Jet Power34 HP (25 kW)25.5 HP (19 kW)17 HP (12.5 kW)20.6 HP (15.1 kW)
Output Pressure50,000 psi50,000 psi50,000 psi60,000 psi
Orifice & Flow Rate **0.015" / 1.09 gpm
(0.41 mm / 4.13 lpm)
0.014" / 0.84 gpm
(0.36 mm / 3.18 lpm)
0.011" / 0.52 gpm
(0.28 mm / 1.97 lpm)
0.011" / 0.6 gpm (0.28mm / 2.3 lpm)
Footprint LxWxH52.5" x 31" x 42"
(1,334 mm x 787 mm x 1,067 mm)
52.5" x 31" x 42"
(1,334 mm x 787 mm x 1,067 mm)
52.5" x 31" x 42"
(1,334 mm x 787 mm x 1,067 mm)
43" x 53" x 40"
(1090 mm x 1350 mm x 1010 mm)

Want to know more about the MAXIEM 1515 Jetmachining Center? Contact Sales
